Why Choosing the Right Murphy Bed Matters for a Tumbleweed Fencl
The Tumbleweed Fencl is a masterclass in compact living, but its 8-foot width and 20-foot length demand every square inch be used wisely. Without a folding bed, the main living area becomes a bedroom first and a lounge second. A well-chosen Murphy bed transforms the Fencl from a glorified sleeping pod into a true multi-function tiny house on wheels. This guide breaks down which vertical and horizontal bed models fit the Fencl’s specific interior dimensions, cabinetry constraints, and weight ratings.
What Is the Maximum Murphy Bed Size the Tumbleweed Fencl Can Accommodate?

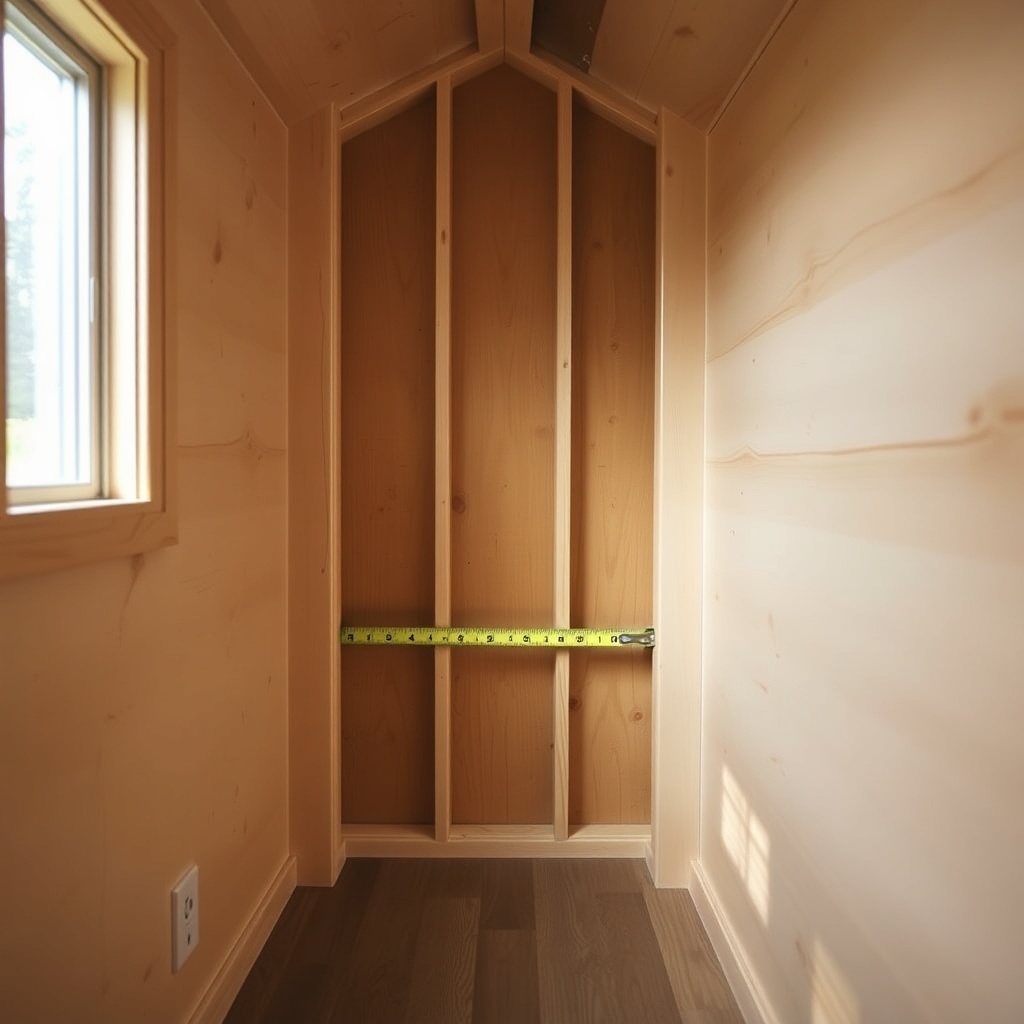

The Fencl’s interior width at the wall studs is roughly 92 inches (7 feet 8 inches), but the actual clear space between finished wall panels is closer to 88 inches. For a horizontal Murphy bed, you are limited to a mattress no wider than a 54-inch full. A 60-inch queen will physically not fit unless you trim the framing. Vertical beds are more forgiving: a 75-inch long twin XL or 80-inch long full XL mattress can work if you locate the bed against the rear 80-inch wall.
Weight is the secret constraint. The Fencl’s standard wall framing uses 2×3 studs at 16-inch centers. A full-size Murphy bed mechanism plus a 50-pound mattress and 20-pound box spring add up to roughly 160 pounds of dynamic load. You must mount the pivot brackets into at least two studs with 3/8-inch lag bolts. Avoid single-stud mounting plates – the twisting force when lowering the bed will crack your wallboard within six months.
Which Murphy Bed Mechanism Works Best with the Fencl’s Vaulted Ceiling?
The Fencl’s standard ceiling height is 7 feet 8 inches at the ridge, sloping to 5 feet at the walls. A typical vertical Murphy bed needs at least 78 inches of vertical clearance for the cabinet. That leaves only 14 inches of clearance above the cabinet – not enough for most pre-built units. You need a mechanism with a low-profile cabinet. Look for units with a maximum cabinet height of 72 inches and a mattress platform that telescopes downward.
The BetterBed Elite Low-Profile mechanism is a good match here. It uses a 6-inch deep cabinet instead of the usual 12-inch deep box. Combined with a 5-inch tall gel memory foam mattress, the total protrusion from the wall is only 12 inches when stored. When lowered, the platform sits 18 inches off the floor – a manageable height for most adults. Always confirm the mechanism’s piston spring rate matches your mattress weight; under-springing will make the bed heavy to lift, over-springing can cause rapid, unsafe descent.
Can You Install a Murphy Bed Without Sacrificing the Fencl’s Couch Storage?
Yes, but only if you use a sofa-style Murphy bed. The Fencl’s standard couch runs along the driver’s side wall and contains three under-seat storage bins. Replacing that entire couch unit with a fold-down bed built into a sofa frame buys you the best of both worlds. Expect to lose the central storage bin to the mechanism’s gas springs, but the front and rear bins remain accessible.
Another option is the “cabinet flip” approach: install a Murphy bed in a tall cabinet where the couch usually sits, then place a separate, narrower sofa (48–52 inches wide) perpendicular to it. This works only if you’re willing to give up the walkway space. Fencl owners who have tried the perpendicular layout report that the space feels cramped but that the sleeping comfort far outweighs the tight squeeze.
| Consideration | What to Watch For |
|---|---|
| Wall stud alignment | Fencl studs are 16 inches on center, but corner studs may be 24 inches. Measure before ordering any mechanism. |
| Mattress thickness limit | Most Murphy mechanisms max out at 8-inch mattress thickness. A 10-inch mattress will rub or bind during folding. |
| Floor slope | The Fencl’s steel trailer frame can have a 0.5-inch slope. Shims under the cabinet are essential to prevent binding. |
| Window clearance | Fencl windows protrude 4 inches into the interior. A Murphy bed cabinet must clear these by at least 2 inches. |
| Piston replacement interval | Gas springs lose pressure after 5,000 cycles. Replace them every 3–4 years for consistent operation. |
| Electrical routing | If you intend to mount a wall light or USB charger inside the bed cavity, run the wiring before installing the mechanism. |
How Much Does a Quality Murphy Bed for the Fencl Cost?
A complete Murphy bed kit – mechanism, cabinet frame, and hardware – starts at around $800 (£625) for a twin XL vertical unit. For a full-size horizontal mechanism with a solid wood cabinet, expect to pay between $1,200 and $1,800. Installation by a professional carpenter familiar with tiny houses runs $400 to $700. Compare that to a custom built-in sofa-bed that costs $1,500 to $2,500 and you see clear value.
Don’t skimp on the mechanism. Budget kits under $500 often use cheap plastic pistons that fail in 12 months, and the cabinets are made from ½-inch MDF that will sag under the mattress weight. Buy a mechanism from a reputable brand like Wallbed or Murphy Door and pair it with a cabinet builder who can match the Fencl’s birch plywood interior.
What Are the Best Murphy Bed Models for Off-Grid Fencl Setups?
If your Fencl runs on solar power (see our Tumbleweed Fencl Solar Panel Kit: Complete Installation Guide), choose a Murphy bed that doesn’t require a power outlet. The best off-grid options use mechanical gas springs and a standard hand-lift mechanism. Avoid models with electric mattress lifts or built-in lighting unless you have extra battery capacity. The gas spring mechanism uses zero energy, and a manual safety latch adds only four pounds – an acceptable trade-off.
One standout for off-grid Fencls is the BedUp Classic Manual. It uses dual 200N gas springs, supports up to 300 pounds, and has a mechanical lock that engages when the bed is folded. The cabinet uses ¾-inch plywood, which resists moisture better than MDF in humid climates. Pair it with a 6-inch latex mattress (no box spring needed) to keep the total static weight under 100 pounds.
What Owners Say
Fencl owners who have installed Murphy beds report two consistent points. First, the folding bed frees up enough floor space to seat four people comfortably, something the standard couch layout cannot do. Second, the real issue is access to the bed’s underside. When the bed is folded up, you lose easy access to the wall behind it for hooks or shelves. Several owners recommend mounting a shallow shelf above the bed cabinet to store books or a tablet, since that wall area is otherwise wasted.
Another common insight: the Fencl’s door swing can conflict with a Murphy bed. If your bed is installed on the wall opposite the door, lower the bed before opening the door fully. One owner damaged their door by forgetting this sequence. A simple reminder sticker on the door frame solves the problem for less than two dollars.
Frequently Asked Questions
Can I install a queen-size Murphy bed in a Tumbleweed Fencl?
No, a queen mattress is 60 inches wide, which exceeds the Fencl’s 88-inch interior width with cabinet framing. A full-size (54 inches) is the maximum horizontal fit. A queen could be used vertically against the rear wall, but the mattress would overhang the platform by several inches.
Does the Murphy bed affect my Fencl’s towing weight?
The bed and cabinet add roughly 80 to 120 pounds distributed low on one wall. It does not meaningfully alter towing dynamics, but you must update your weight sheet and verify the hitch tongue weight remains within 10–15% of total.
Can I mount a Murphy bed over the Fencl’s closet?
The Fencl’s closet is typically on the wall opposite the door. Its depth (24 inches) and the presence of hanging rods make a Murphy bed installation impossible without completely gutting the closet. If you need more space, read our Maximize Closet Space in Your Tumbleweed Fencl guide instead.
Will a Murphy bed block my Fencl’s window?
Only if you mount the bed directly over a window. The Fencl has windows on the rear and both side walls. Install the bed on a windowless wall – typically the front wall (behind the couch) or the wall shared with the kitchen. If you must place it over a window, use a bed that folds sideways (horizontal) and is 6 inches shorter than the window height.
How do I keep the mattress from sliding when the bed is vertical?
Use a non-slip rug pad cut to mattress size, or install a simple elastic strap system. Most Murphy bed kits include a base board with a lip that holds the mattress when tilted. If not, buy a mattress retainer bar for $15.
Can I build my own Murphy bed cabinet to match the Fencl’s interior?
Yes, but only if you have experience with cabinet joinery and can source ¾-inch Baltic birch plywood (the Fencl interior uses birch-faced panels). Build the cabinet ¾ inch narrower than your planned mattress width to allow clearance. Then follow The Ultimate Small Space Furniture Buying Guide for Tiny Houses for hardware recommendations. Expect 15–20 hours of build time.
